Fully Automatic Horizontal Injection Moulding Machine

Home › Products › Moulding Machine › Fully Automatic Horizontal Injection Moulding Machine

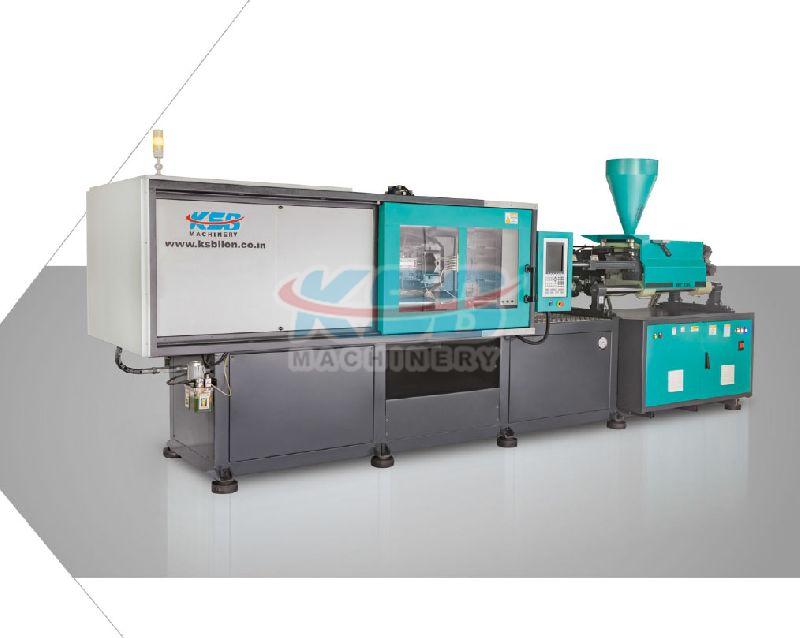

Fully Automatic Horizontal Injection Moulding Machine
Fully Automatic Horizontal Injection Moulding Machine

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Voltage 220V
Power 1-3kw
Warranty 1 Year
Click to view more

Preferred Buyer From

Location Worldwide
Request to Call Send Enquiry

Product Details

Brand Name
KSB

Gear Mechanism :

  • Adjustment for Precise & Consistent Tonnage
  • Simple & Accurate Mould Height



Platens on Wide Skates

  • To Accommodate Large &
  • Heavy Moulds



User Friendly Control:

  • Ergonomic Layout
  • High Speed Microprocessor
  • Direct Access Menu Keys
  • Parameter Entry in
  • Absolute Value
  • Central Monitoring System



Multi Stage Ejector

  • Smooth & Fast Ejection
  • Easy Access to Ejector Area



High Temperature Stability

  • PID Tuning of Barrel Temperatures
  • With Ceramic Heater



Energy Efficient Hydrualics

  • Electronically Controlled
  • Variable Pump For
  • Low Energy Consumption



Types of Injection Moulding Machines

  • upvc injection moulding machine
  • Toggle injection moulding machine
  • Microprocess Vertical injection moulding machine
  • Injection Moulding Machines
  • Servo injection moulding machine
  • Energy efficiency injection moulding machine

Yes! I am interested


Model

SPECIFICATION   HT-30 HT-50
INJECTION UNIT   A B C A B C
Shot Weight Max.(PS) Gm. 18 28 36 40 55 67
Theoretical Displacement cc 20 30 35 45 56 63
Injection Pressure Kg/cm2 2100 1950 1875 2100 1950 1800
Injection Rate cc/sec 30 50 60 50 65 75
Injection Screw Stroke mm 85 85 85 110 110 110
Screw Diameter mm 18 22 24 24 28 30
Screw L/D Ratio -- 27 21.9 20 26.8 22.9 21.3
Screw Speed rpm 360 360 360 310 310 310
Screw Torque @ 150 BAR Nm 60 100 160 170 170 150
Plasticizing Rate (GPPS) gm/sec 3 5 6.5 5 9 12
NO.Of Pyrometers(Barrel+Nozzel) -- 3+1 3+1
Total Heat Capacity kW 5.5 6.4

CLAMP UNIT

Clamp Force ton 30 50
Clamp Stroke mm 225 275
Maximum Daylight mm 500 600
Min. Mould Height mm 120 120
Max.Mould Height mm 275 325
Platen Size (H x V) mm 395 x 395 500 x 500
Dist. Between Tie Rod mm 250 x 250 310 x 310
Tie Rod Dia. mm 45 55
Ejector Stroke mm 80 100
Ejector Force ton 1.7 2.3

General

Electric Motor kW (HP) 7.5 (10) 9.3 (12.5)
Total Oil Capacity Ltr. 150 200
Water Req. @. 29C Lpm 40 40
Connected Load kW 13 17.4
Machine Dimension (LxWxH) Mtr. 3.1 x 1.2 x 2.0 3.5 x 1.2 x 2.1
Machine Weight (Approx) Kg 1850 2400
